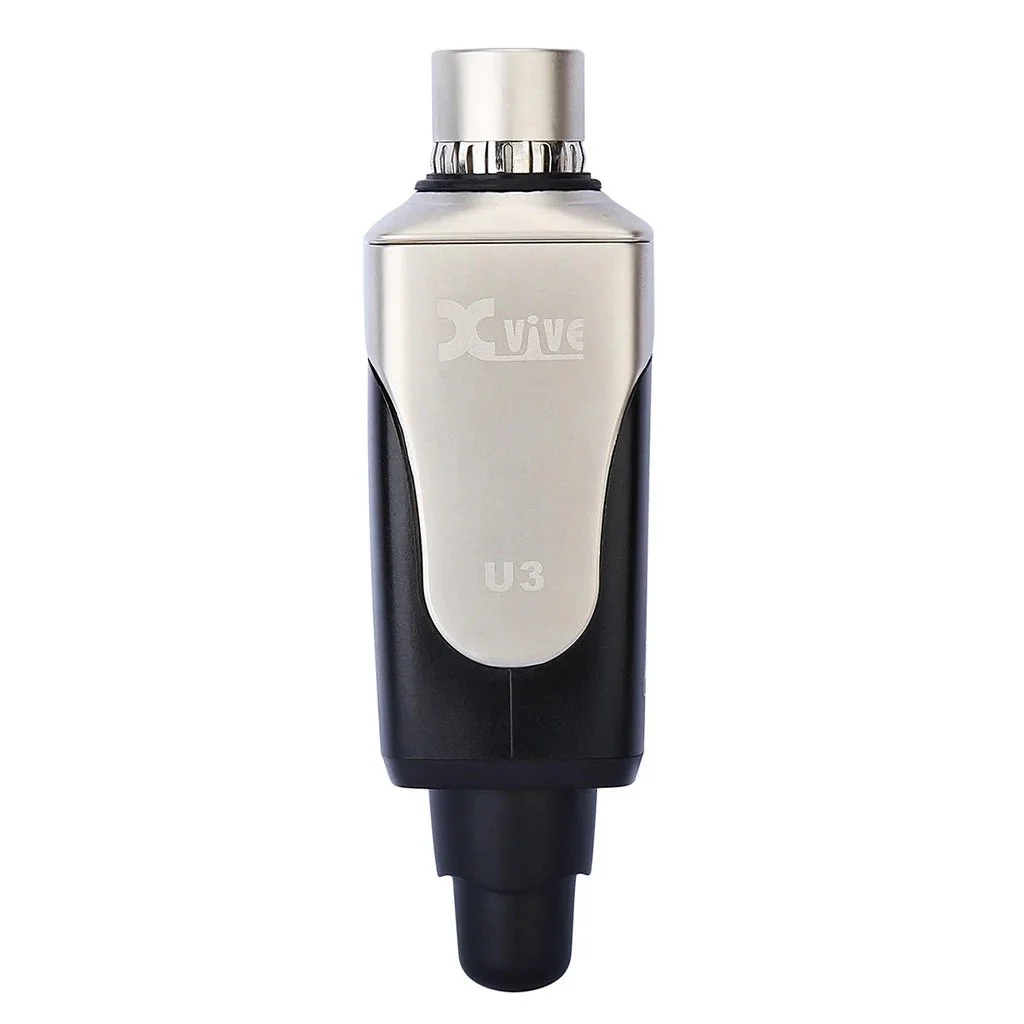

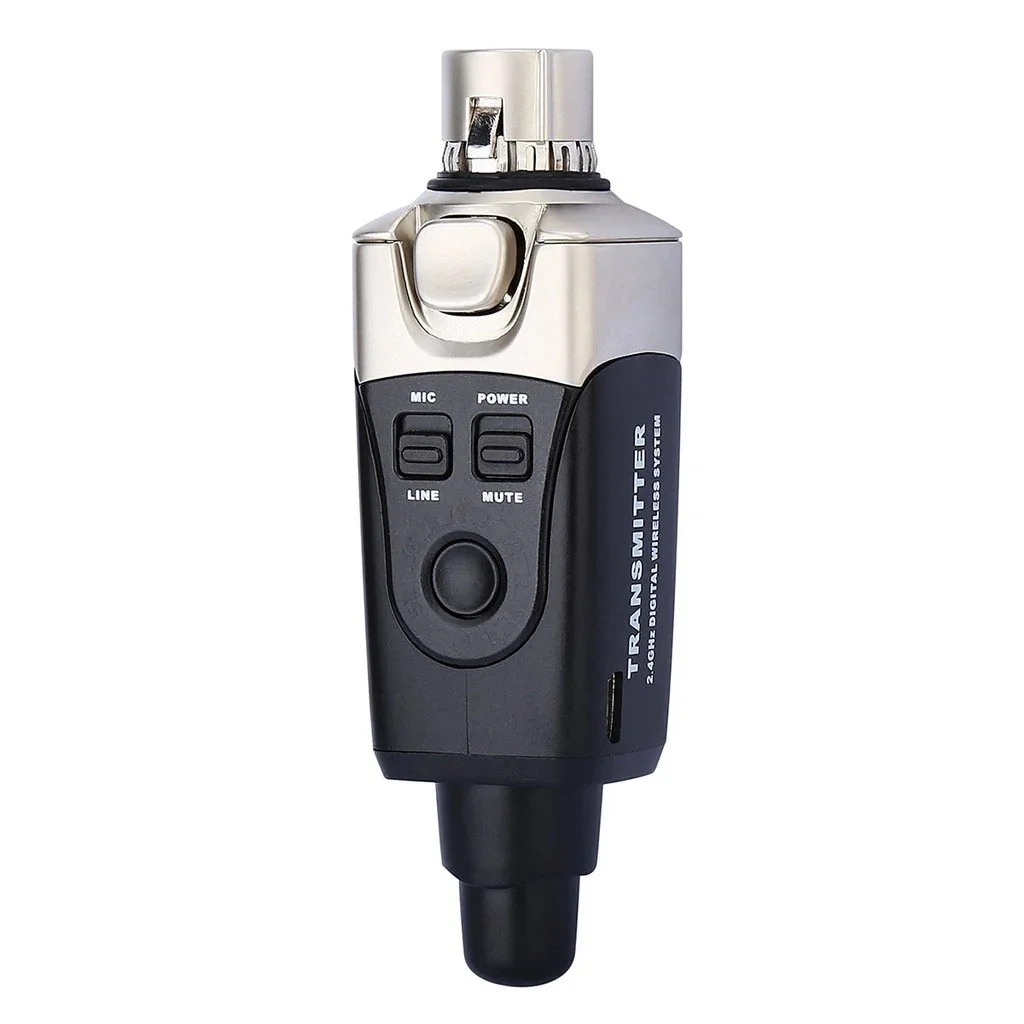

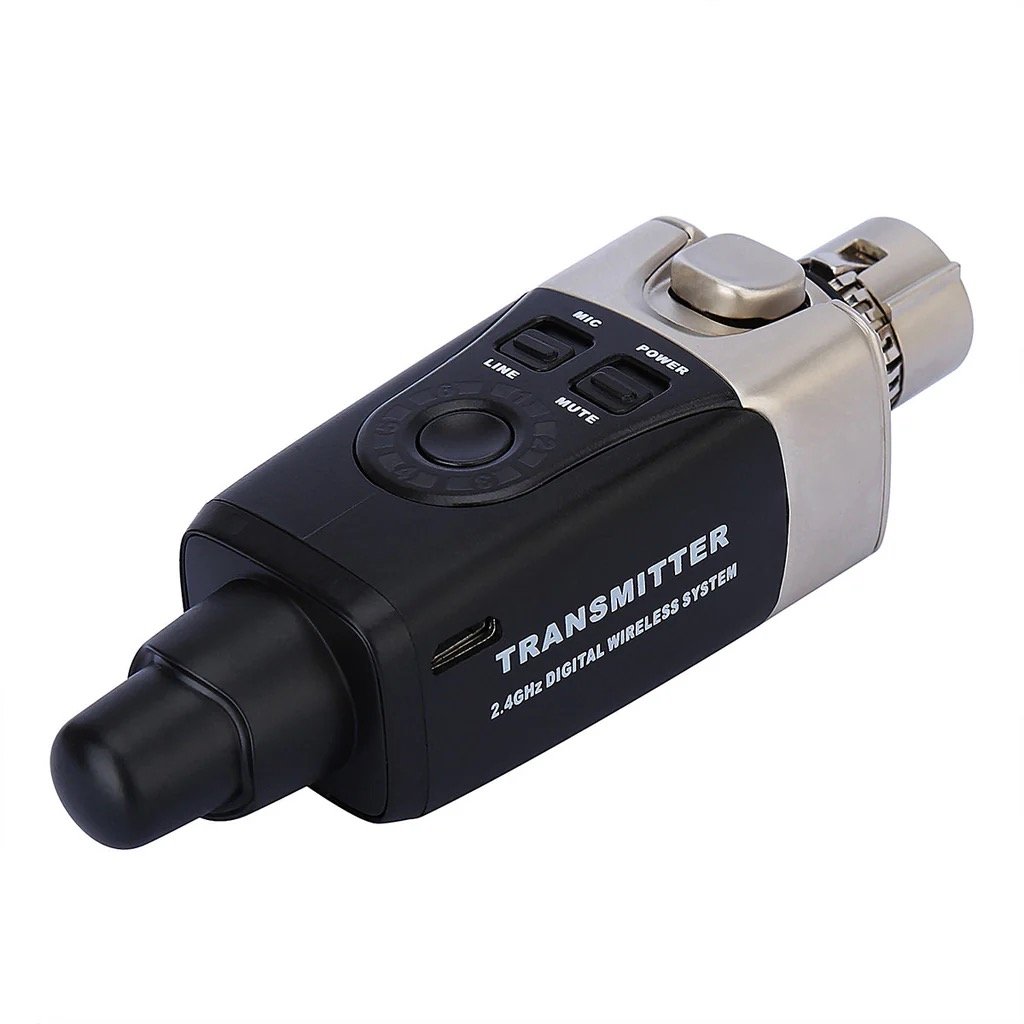

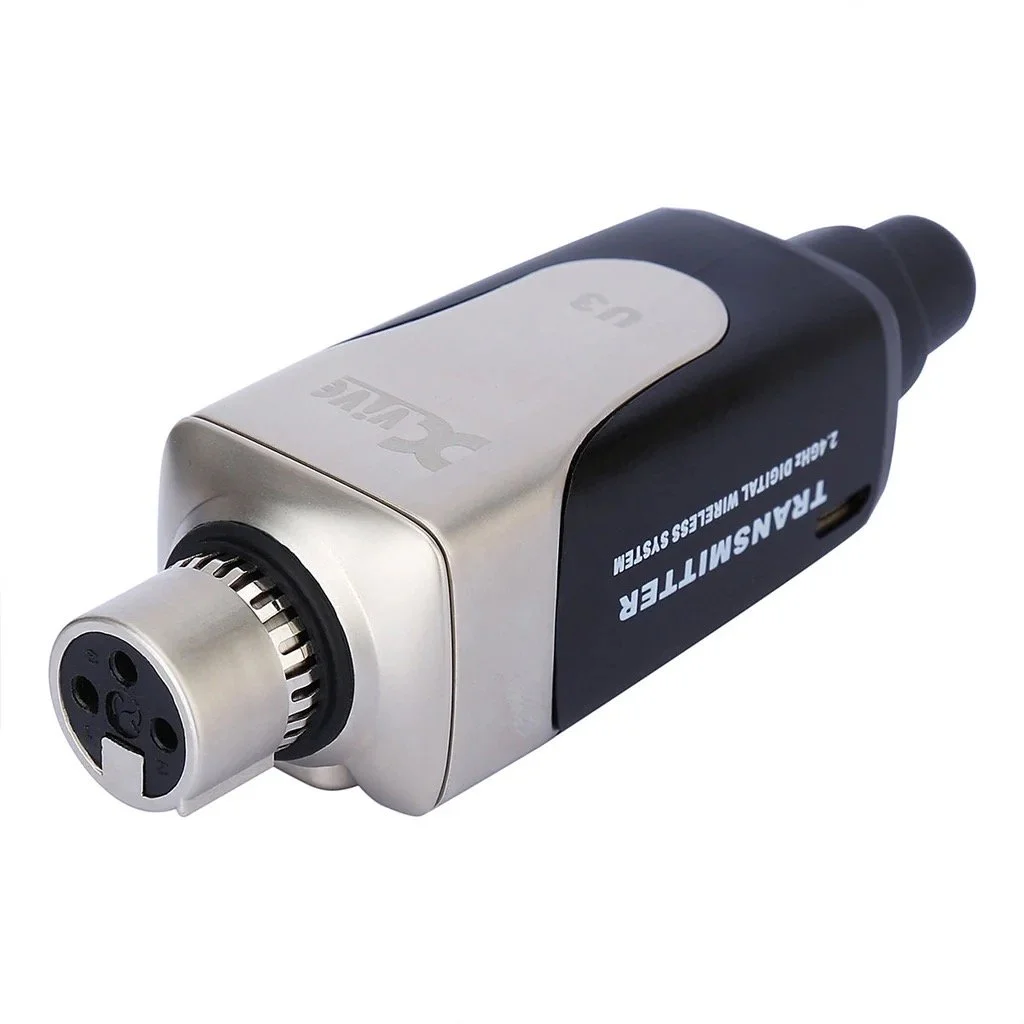

The U3T is a wireless transmitter designed for use with the U3 Microphone Wireless System, and can be used as a replacement or backup unit. Although only one transmitter can be used with a U3R receiver at a time, the receiver can toggle between two transmitter sources by changing from the channel of one to the channel of the other.
WIRELESS TYPE 2.4 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE 24-bit / 48 kHz
SWITCHABLE CHANNELS 6
SIMULTANEOUS CHANNELS 6
MODE Input: Mic / Line
FREQUENCY RESPONSE 20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE 110 dB (-3 dB)
MICROPHONE COMPATIBILITY Dynamic and battery-powered condenser microphones
SIGNAL-TO-NOISE RATIO 110 dB
TOTAL HARMONIC DISTORTION 0.2%
LATENCY 5 ms
OPERATING RANGE 27.5 m / 90 ft (line-of-sight)
POWER N/A
MODE Input: Mic / Line

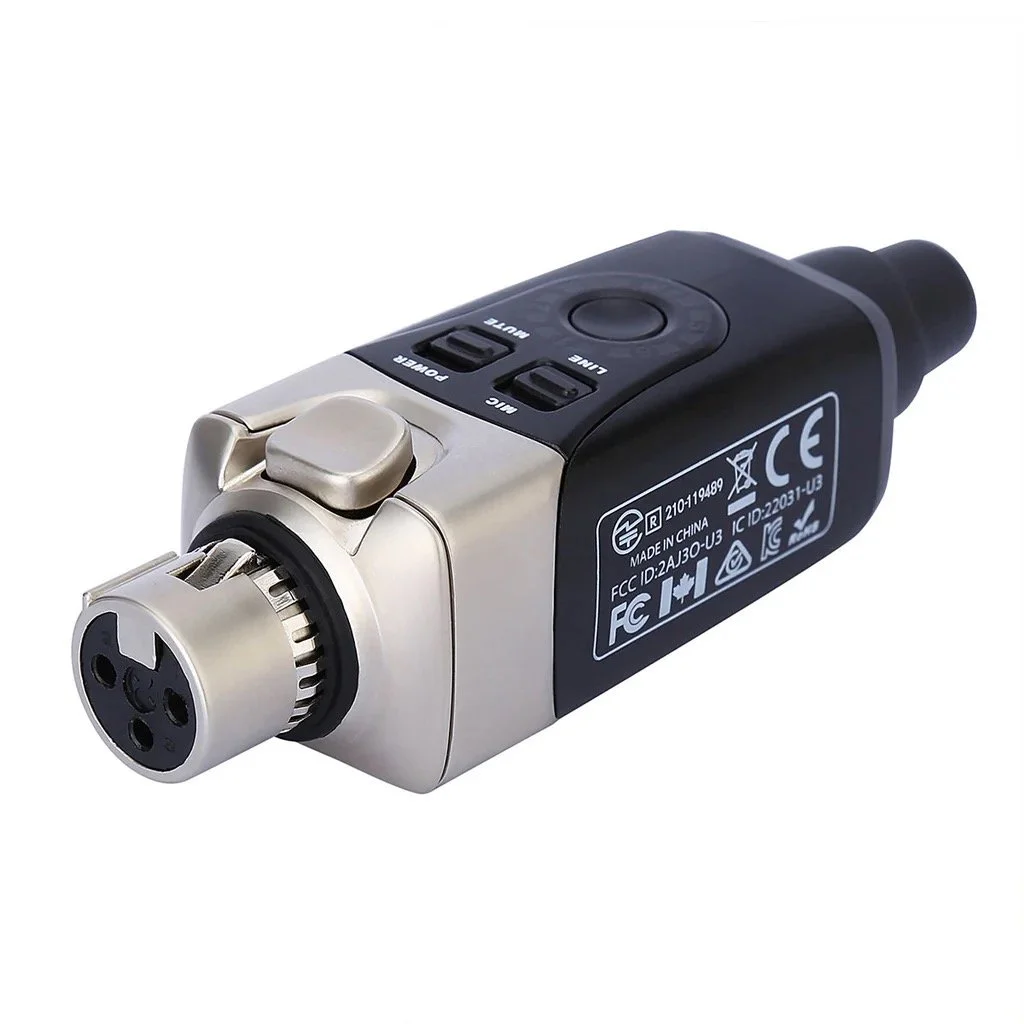

CONNECTOR XLR (female)
DIMENSIONS 31 x 29 x 98 mm / 3.9" x 1.2" x 1.1"
WEIGHT 93 g / 3.3 oz
MUTE Yes
