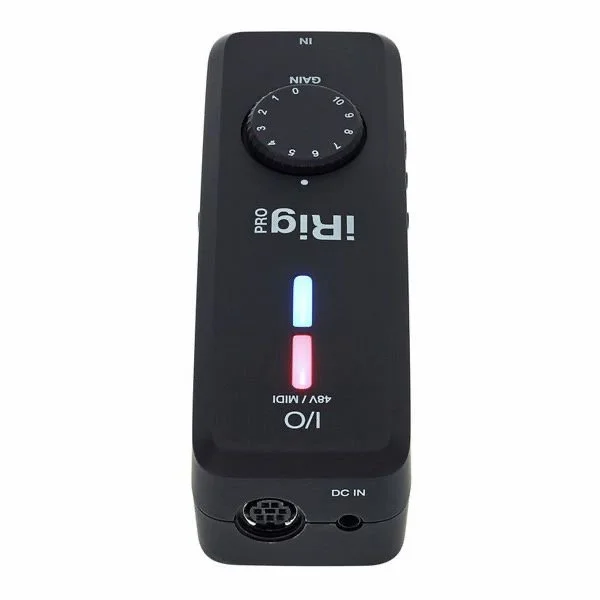

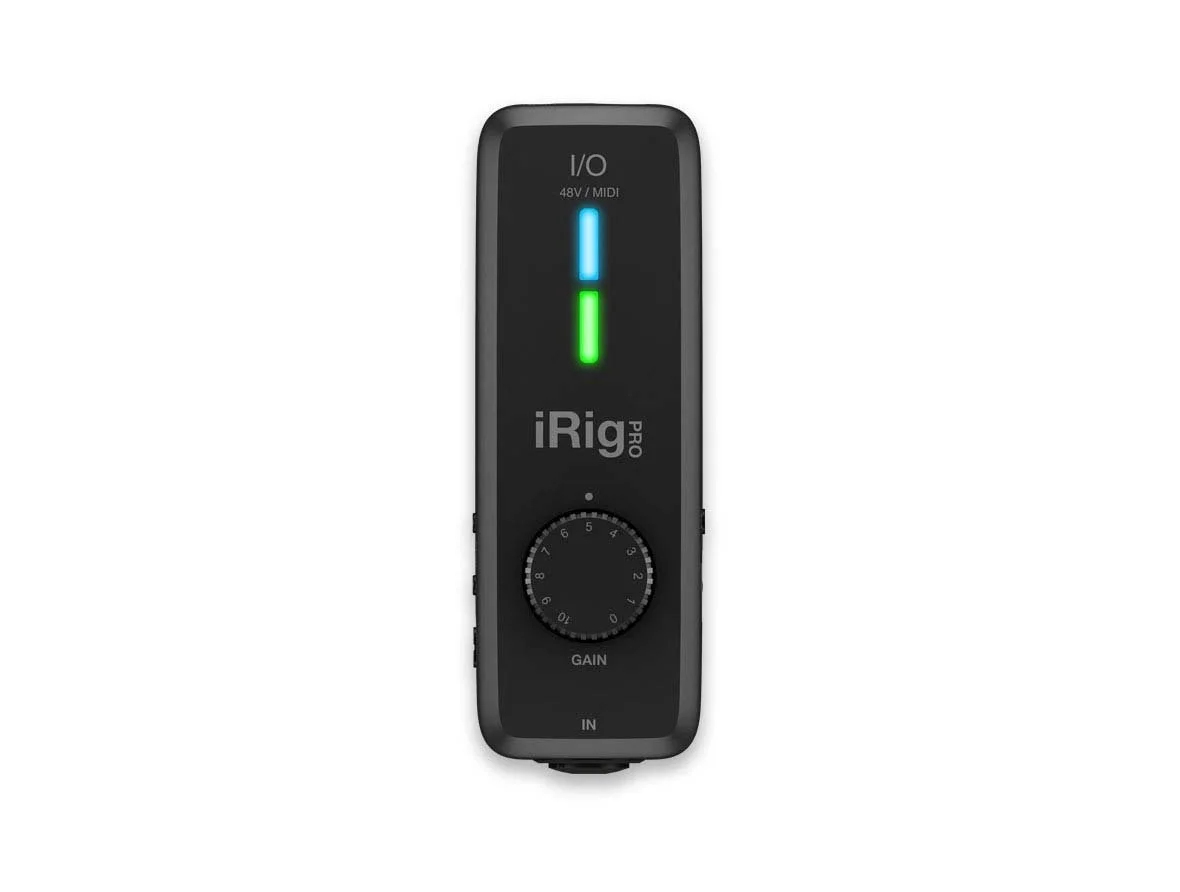

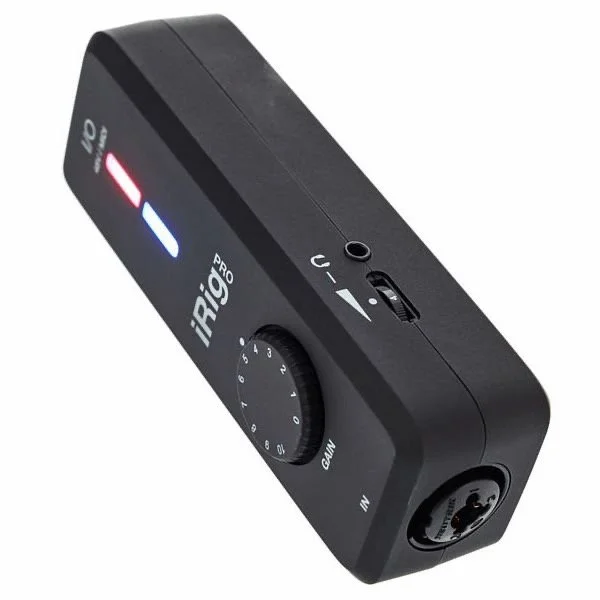

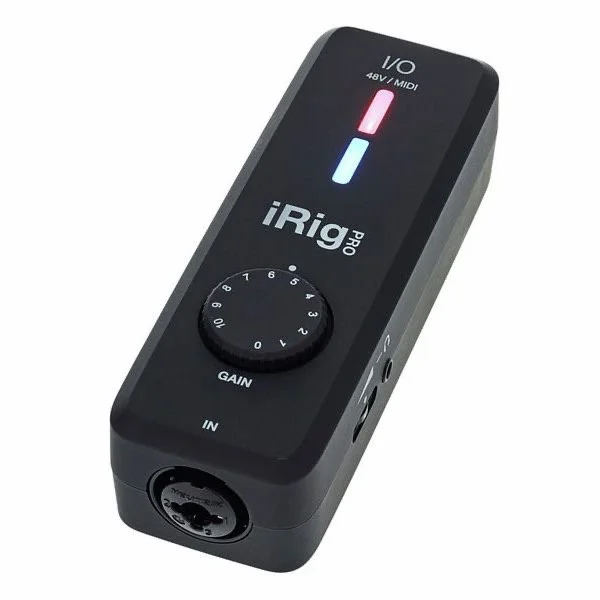

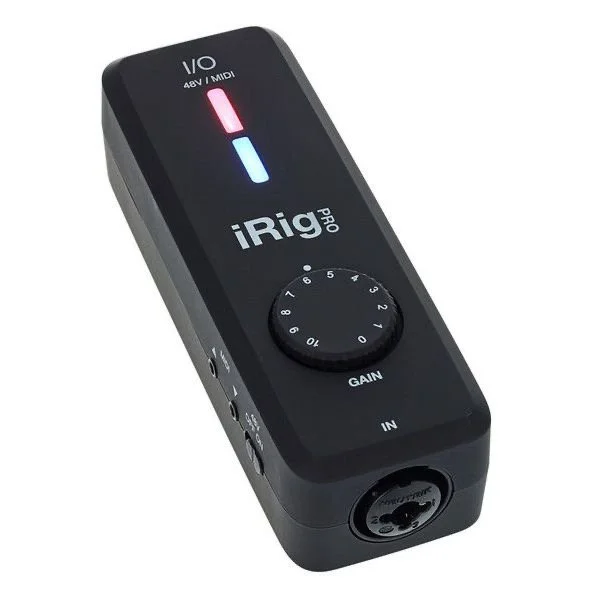

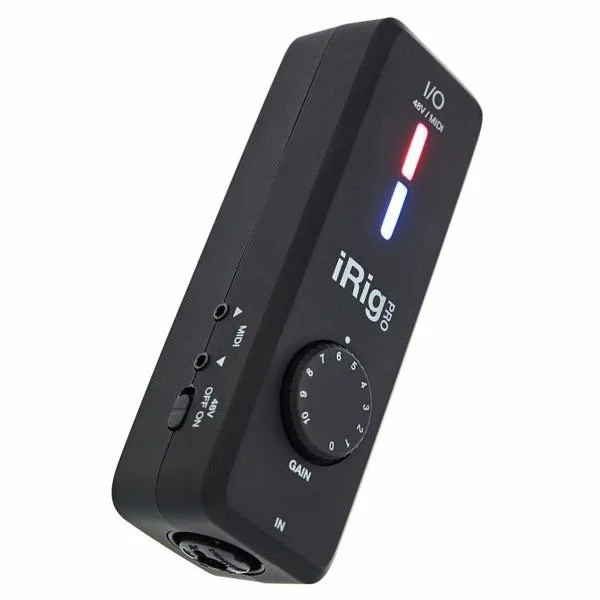

IK Multimedia iRig Pro I/O

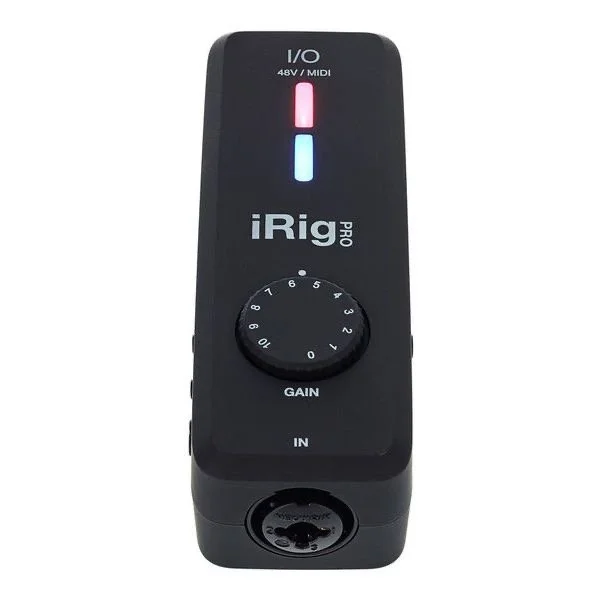

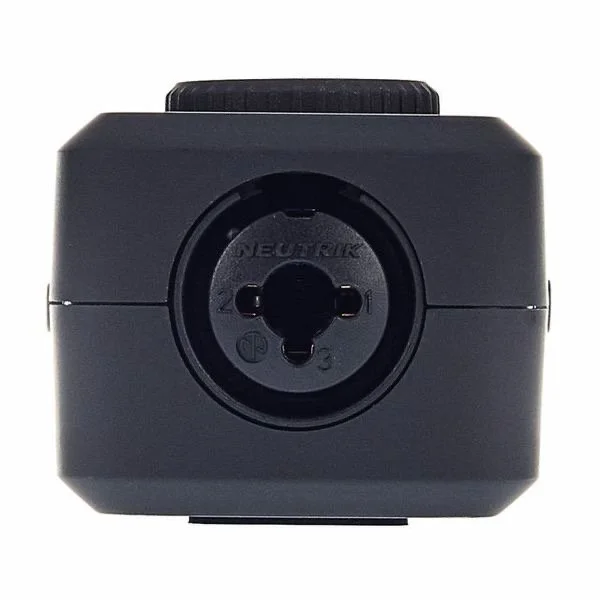

• Combination input XLR and 6.3 mm jack for microphone, line and instrument signals

• High-quality preamplifier with adjustable gain

• High-quality ADDA conversion with up to 24 bit / 96 kHz

• Adjustable stereo headphone output

• MIDI input and output

• Power supply via USB, 2x AA batteries or optional mains adapter (not included)

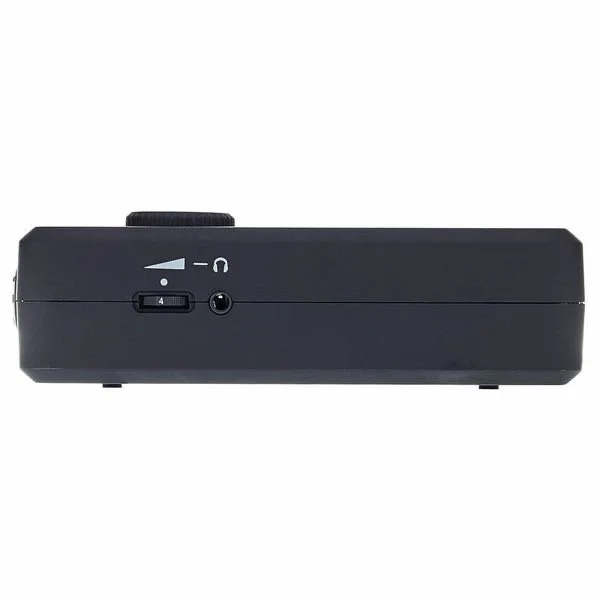

• Headphone output: 3.5 mm stereo jack unbalanced, 100 mW at 50 Ohm

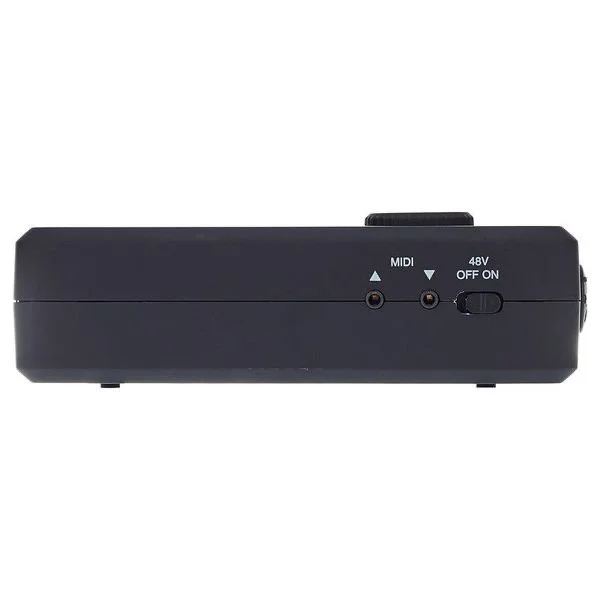

• MIDI input and output: 2x 2.5 mm mono jack

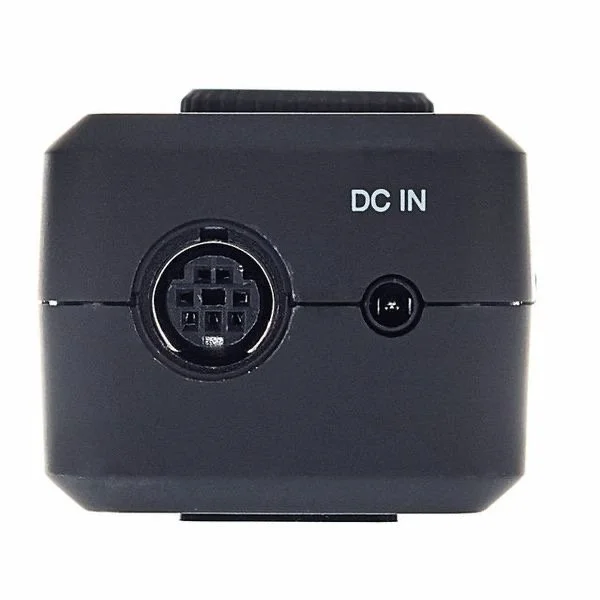

• Power supply connection 5.4 V DC (optional power supply: Article no. 417705, not included)

• Device connection Mini-DIN

• Dimensions: 43 x 127 x 37 mm

• Weight: 120 g (without batteries)

Microphone input:

• XLR balanced

• +48V +/-4V Phantom powering

• 40 dB gain

• Impedance 1.6 kOhm

• Frequency range: 20-20000 Hz +/-1.5 dB

• Noise level -103 dB(A)

• -97 dB RMS

Instrument input:

• 6.3 mm jack, unbalanced

• 27 dB gain

• Impedance 1 MOhm

• Frequency range: 20-20000 Hz +/-1.5 dB

• Noise level -103 dB(A)

• -97 dB RMS

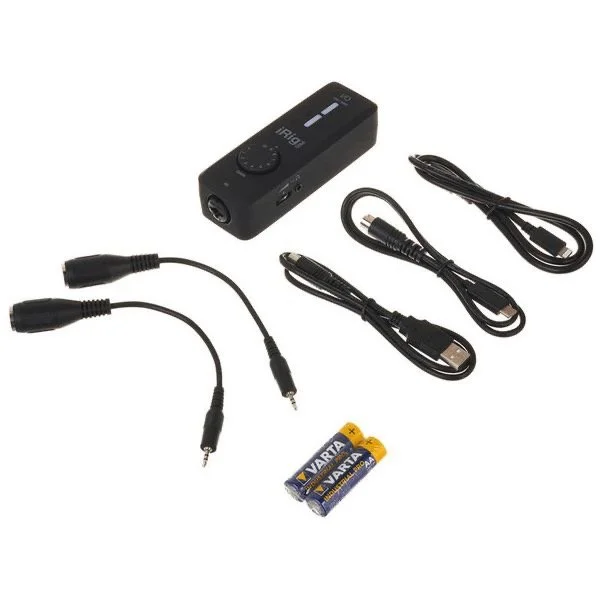

Includes:

• iRig Pro I/O Audio MIDI Interface

• Lightning to mini-DIN adapter cable 0.6 m

• USB to Mini-DIN adapter cable 0.6 m

• 2x 2.5 mm jack MIDI adapter cable 1.6 m

• 2x 1.5 V AA battery

• Comprehensive software package AmpliTube 4 and AmpliTube 5 SE as download via manufacturer/app store

• Sales Unit 1 piece(s)

• Recording / Playback Channels 1x2

• Number of Mic Inputs 1

• Number of Line Inputs 1

• Instrument Inputs 1

• Number of Line Outs 0

• Headphone Outs1

• Phantom power Yes

• Number of S/PDIF Connectors 0

• Number of ADAT Connectors 0

• Numer of AES/EBU Connectors 0

• Number of MADI Connectors 0

• Ethernet 0

• Other Connectors No

• MIDI interface Yes

• Word Clock No

• Max. sample rate (kHz) 96 kHz

• Max. resolution in bit 24 bit

• USB Bus-Powered Yes

• Incl. power supply No

• USB Version 1.1

• Width in mm 127 mm

• Depth in mm 43 mm

• Height in mm 37 mm

• Connection Format Mini DIN-USB Typ A, Mini DIN-Lightning

• Type Audio Interface

• Included in delivery Lightning-, USB- and 2x 3,5mm Jack to MIDI Cable
