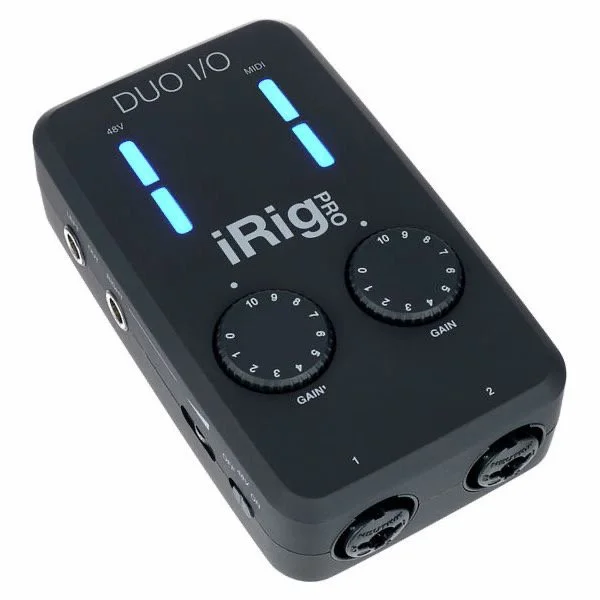

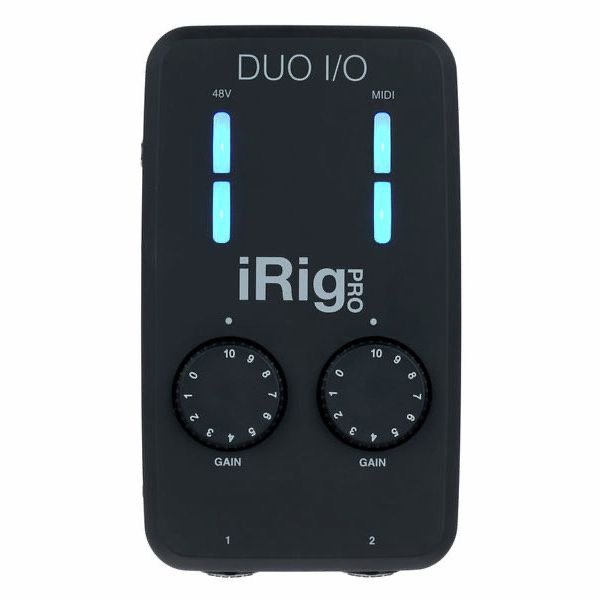

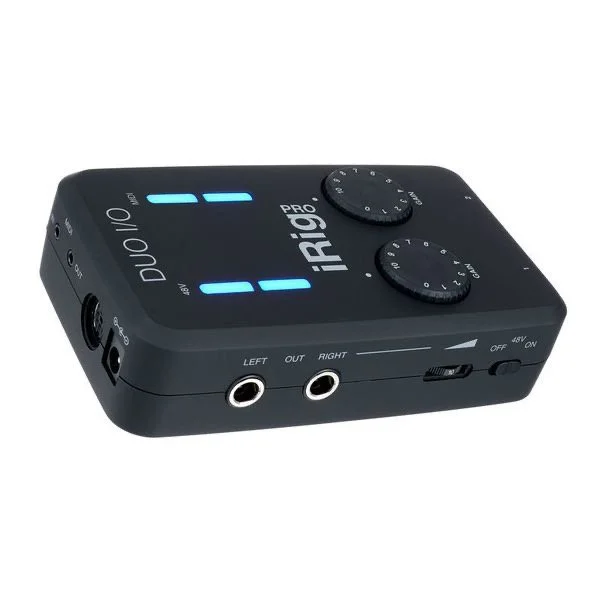

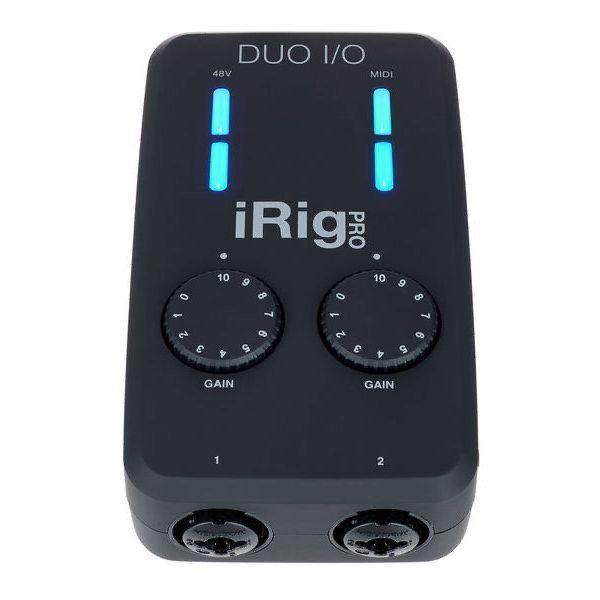

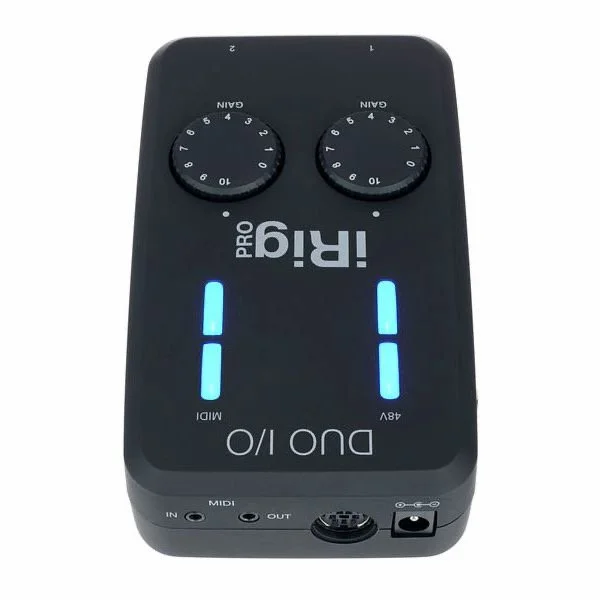

IK Multimedia iRig Pro Duo I/O

• Very compact design for portable use

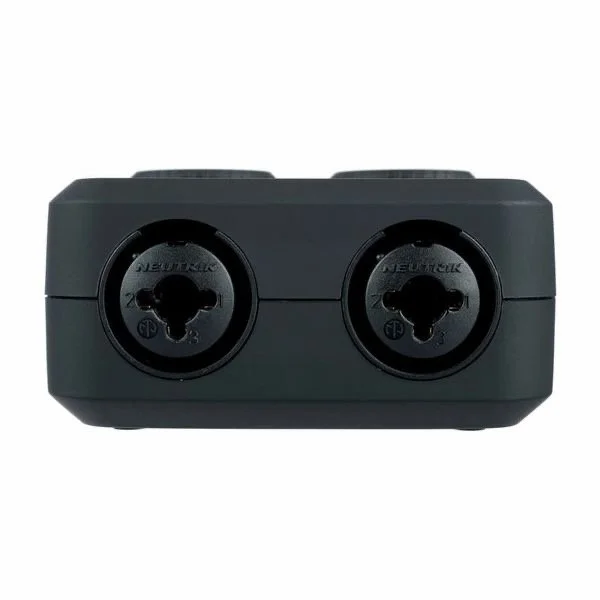

• 2 Combined mic / instrument inputs via combination jacks

• 2 High-quality microphone preamplifiers with individually adjustable gain and phantom power

• 2 Balanced line outputs

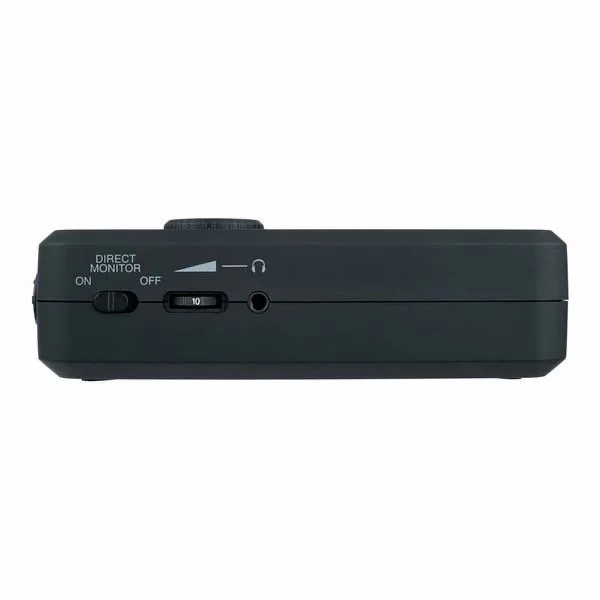

• Headphone output with volume control on 3.5 mm stereo mini jack

• Switchable direct monitoring

• AD/DA conversion: 24bit / 48kHz

• MIDI in/out

• Power supply via USB

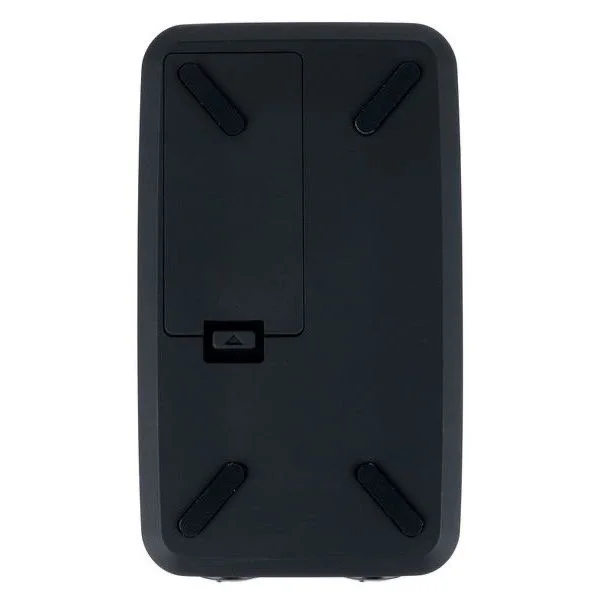

• 9 Volt power supply (not included) or batteries (2x AA)

• Microphone inputs: 2 x XLR balanced

• +48V +/-4V phantom power

• 50 dB gain

• Impedance: 3.2 ohms

• Frequency range: 20 - 20000 Hz

• Noise level -103 dB (A)

• Instrument inputs: 2x 6.3 mm jack unbalanced

• Gain: 27 dB

• Impdeance: 1 ohms

• Frequency range: 5 - 21000 Hz

• Noise level -104 dB (A)

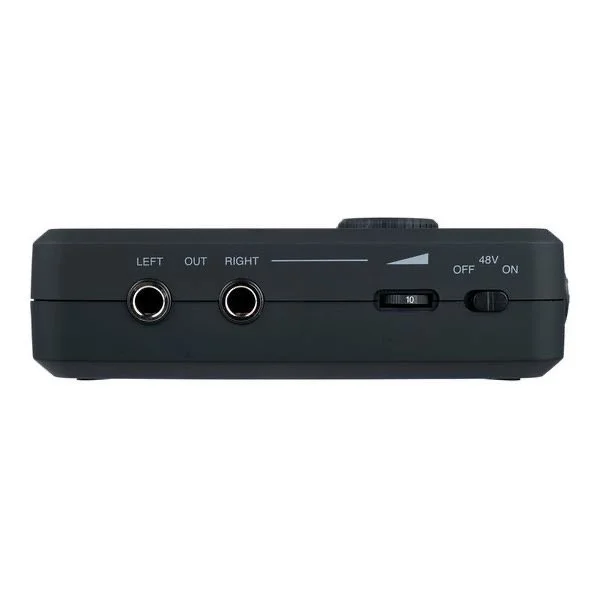

• Line outputs: 2x 6.3 mm jack balanced, max. Output level: 16 dBu / 600 ohms

• Frequency range: 10 - 21000 Hz

• Dynamic range: 106 dB-A

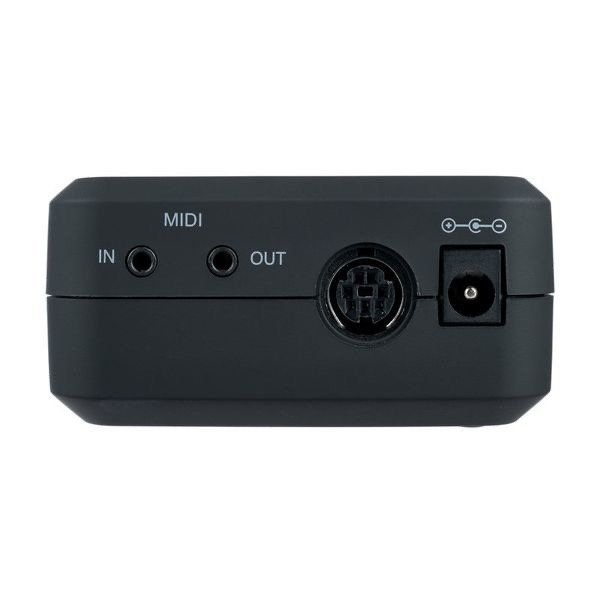

• MIDI input and output: 2 x 2.5 mm mono jack

• Power supply connection 9 V DC 500 mA

• Device connection mini-DIN

• Dimensions: 127 x 75 x 37 mm

• Weight: 197g (incl. batteries)

• System requirements: iOS 7.0, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation), from Android 5 on devices with USB digital audio functions, from Win7, from Mac OS X 10.6

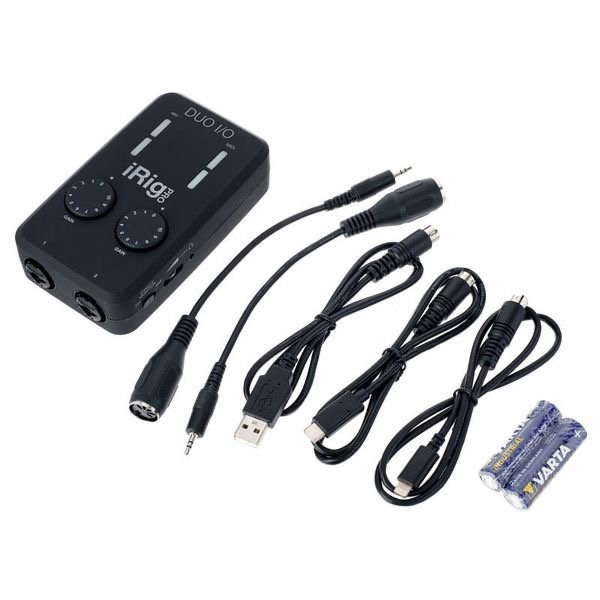

Delivery contents:

• iRig Pro Duo

• Lightning on mini DIN cable 0.6 m

• USB-C on mini-DIN cable 0.6 m

• USB to mini-DIN cable 0.6 m

• 2 x 2.5mm jack on MIDI cable 0.1 m

• 2 x 1.5 V AA batteries

• AmpliTube 4 and AmpliTube 5 SE

• Sales Unit 1 piece(s)

• Recording / Playback Channels 2x2

• Number of Mic Inputs 2

• Number of Line Inputs 2

• Instrument Inputs 2

• Number of Line Outs 2

• Headphone Outs 1

• Phantom power Yes

• Number of S/PDIF Connectors 0

• Number of ADAT Connectors 0

• Number of AES/EBU Connectors 0

• Number of MADI Connectors 0

• Ethernet 0

• Other Connectors Lightning

• MIDI interface Yes

• Word Clock No

• Max. sample rate (kHz) 48 kHz

• Max. resolution in bit 24 bit

• USB Bus-Powered Yes

• Incl. power supply No

• USB Version 1.1

• Width in mm1 27 mm

• Depth in mm 75 mm

• Height in mm 37 mm

• Connection Format Mini DIN-USB Type A, Mini DIN-USB Type C, Mini DIN-Lightning
