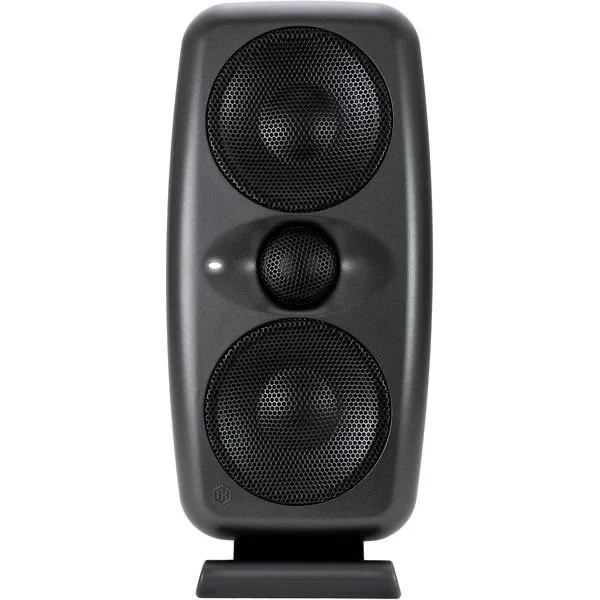

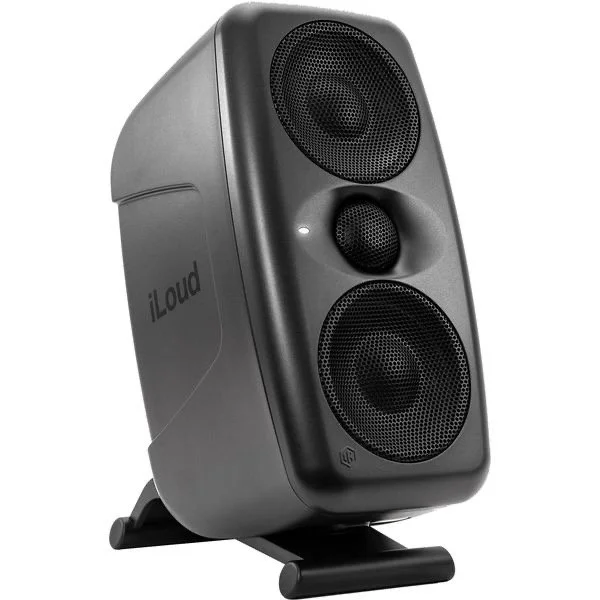

Considering the price, the IK Multimedia iLoud MTM MKII monitor delivers unparalleled sonic perfection and volume, all thanks to an upgraded set of drivers and doubled processing power, all of which make it possible to transform virtually any room into the ideal mixing and mastering space. The symmetrical Midrange-Tweeter-Midrange (MTM) design and highly accurate time-alignment supports supremely clear, neutral audio reproduction reinforced by deep yet controlled basses and a linear phase-response. Basically, you're looking at zero compromise.
The MTM MKII monitor also boasts advanced ARC auto-calibration and integrated X-MONITOR software, which already comes with some hefty renown and opens up access to emulations of twenty different high-end studio monitors. This hands over the option to A/B test during the mixing phase while keeping the monitor setup compact, especially since this monitor pretty much operates and feels like a complete suite, pre-equipped with a set of accurately tuned monitoring tools. Meanwhile, the improved drivers and efficient, vertical and horizontal audio dispersion guarantees minimal acoustic interference - ideal for desktop work and other volume-dependant tasks.

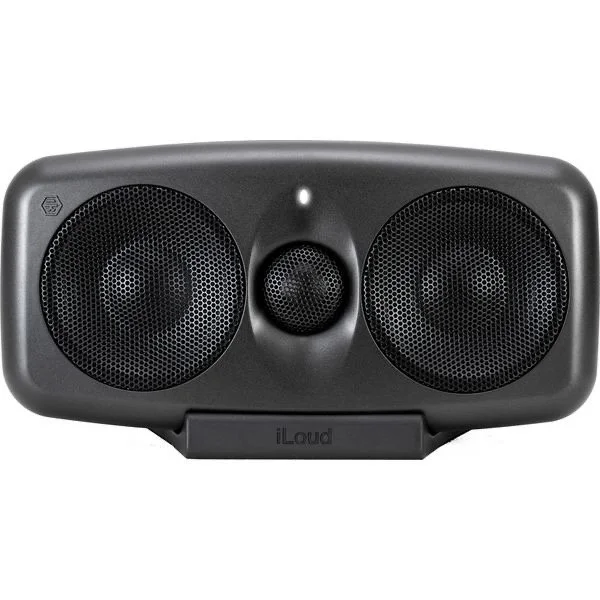

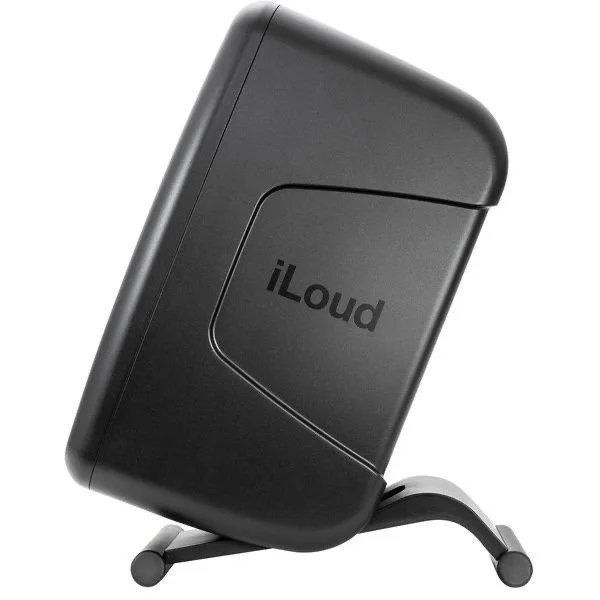

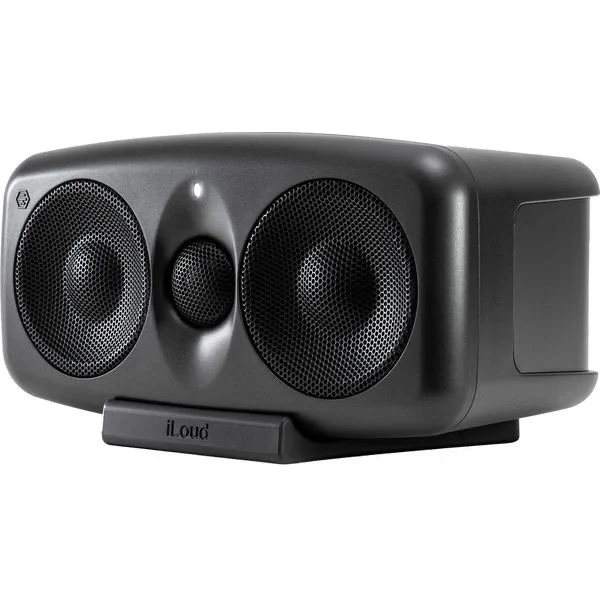

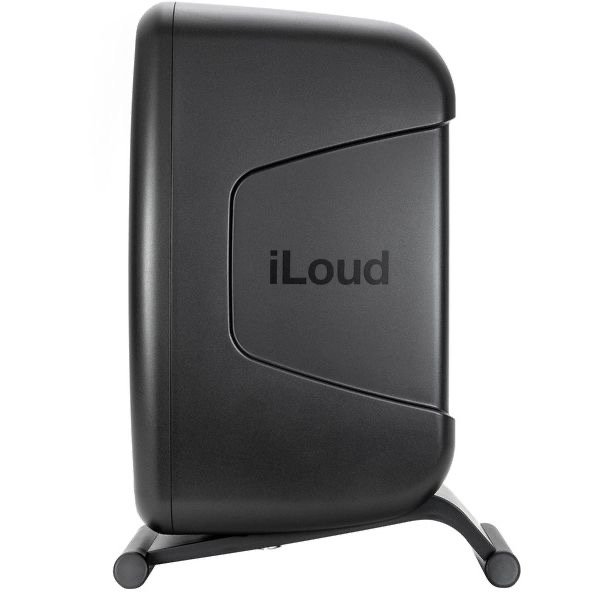

While it carries a colossal amount of refined tech, the housing of the MTM MKII is amazingly compact and weighs just 2.3 kilograms. A tilting desktop mount and isolation pad also come included for horizontal placement, no matter where you're working and, to accommodate any studio space, this versatile monitor can also be installed to serve as an overhead or wall speaker using a compatible bracket (not included).
Tips or comments about this product
Please note: This single studio monitor does not come including an ARC MEMS microphone. The set of two MTM MKII studio monitors does come including an ARC MEMS microphone as standard.
Sustainable productnot specifiedActive or passiveactiveTweeter diameter1 inchMid driver diameternot applicableWoofer diameter2 x 3.5 inchCoaxialnoMonitor set configurationsingle speakerMaximum frequency27 - 28.9 kHzMinimum frequency40 - 49 HzRMS power in watts100 - 199 WSpeaker connections3.5 mm mini-jack microphone input, XLR / TRS combi inputType of studio monitorMTM (woofer + tweeter + woofer)Bass reflex systembackInternal calibrationyes
Weight (incl. packaging)3,6 kgDimensions (incl. packaging)32,5 x 24,0 x 21,5 cm
type: 2-way/3-speaker bi-amplified, digitally controlled studio monitor

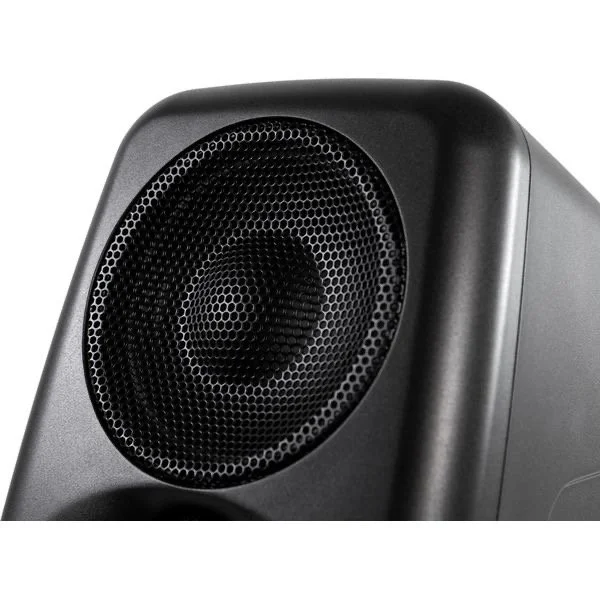

LF-drivers: 2 x 3.5" composite cellulose fibre, custom designed mid-woofers
HF-drivers: 1" low distortion, back chambered side dome tweeter
acoustic design: DSP tuned bass reflex
number of amplifiers per speaker: 2
amplifier type: high efficiency Class-D
power: 100 Watts RMS
power: 70 Watts RMS
power: 30 Watt RMS
crossover type: digital, linear phase
crossover frequency: 2.8 kHz
frequency range: 48 Hz to 28 kHz ± 2 dB, 36 Hz to 32 kHz at -10 dB
phase response: System coherence within +/- 15° from 200 Hz to 20 kHz
sensitivity at +4 dBu: -6 dBu signal generated, 94 dB SPL at 1m
sensitivity at -10 dBV: -17 dBu signal generated, 94 dB SPL at 1m
continuous, long term SPL free field, 1m distance, one speaker, ANSI-2034
peak SPL, half room, 1m distance, one speaker, ANSI-2034

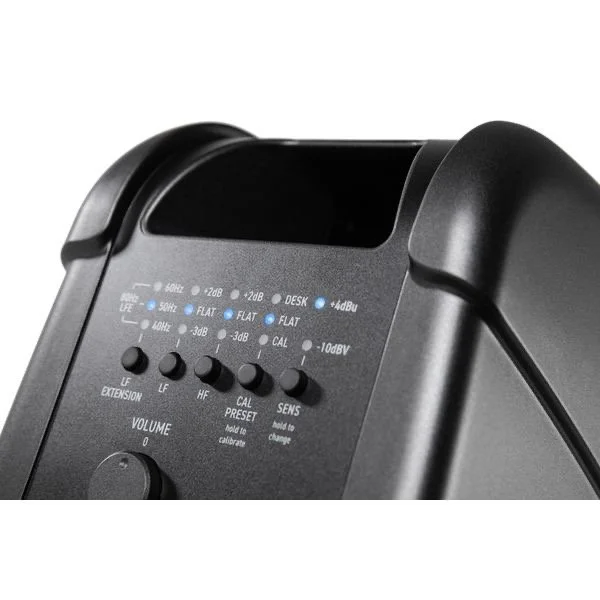

placement settings: manual switched for LP expansion, LF trim, HF trim, desk position
LF expansion switches: sets -3dB frequency range point at 40, 50, 60 or 80 Hz (LFE)
LF-switch: Low Shelf, +2 dB or -3 dB from 100 Hz down
HF-switch: High Shelf, +2 dB or -3 dB from 8 kHz up
desk-switch: -4 dB at 160 Hz and +1 dB at 1,8 kHz
calibration: full automatic built-in digital calibration
full DSP control
total latency (TOF): 2.44 ms

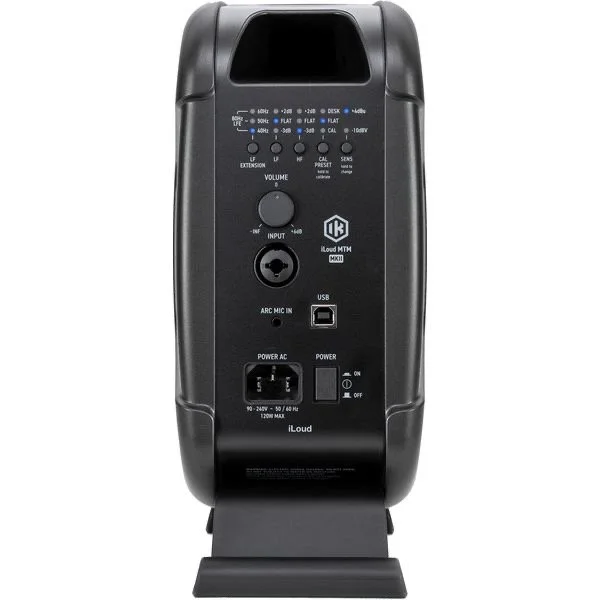

connections: 1x combo XLR/3.5mm TRS jack balanced input; 3.5mm TS jack ARC microphone input, 1x USB type-B port, AC POWER socket
power requirements: 90 to 240V AC, automatically activated, 50 or 60 Hz, 120W max. power consumption
