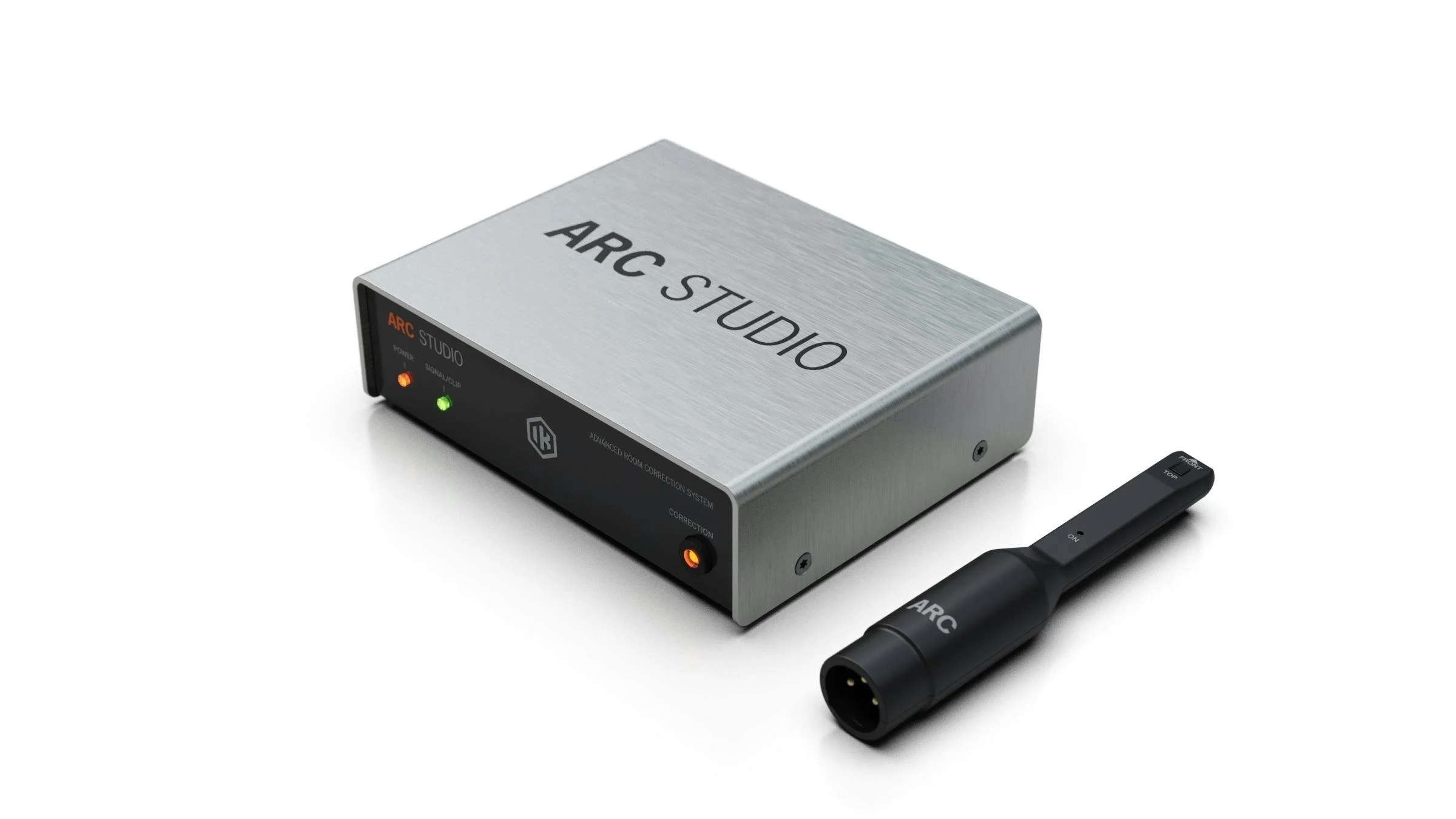

Upgrade any studio monitor instantly with the first out-of-the-box acoustic room correction system that anyone can afford. ARC Studio combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone.
There’s a reason all today’s top-tier studio monitors are adding active room correction – it supercharges their performance and ensures mixes translate flawlessly. ARC Studio offers this same massive boost in performance and accuracy to any monitor in every studio.
Features:
Improves any studio:
For pro studios, whether in-the-box or console-based, ARC Studio allows for a sonically transparent correction and custom-tuning for any monitoring setup from nearfields to mains, preserving the inherent system’s sonic quality.
Target Curves:
ARC 4 now comes with 9 factory target curves for most situations. The default curve offers optimally balanced results, with other specific curves for different needs or setups.
Adjustable correction range:
By Default, ARC corrects the entire frequency spectrum, but you can define limits to both upper and lower correction ranges separately. This is useful if you want to preserve the unique voicing of your monitors or are just looking to correct a certain frequency range.
Audio:
- AD and DA converters: AKM Velvet Sound
- Audio conversion and internal processing sampling rate: 96 kHz
- Audio conversion resolution: 24-bit
- Internal processing resolution: 32-bit float
- Frequency Response: 2 Hz - 45.0 kHz (- 2.0 dB)
- Dynamic Range: 120 dB (A-weighted)
- THD (20-20 kHz): 0.00035%
- THD+N (1 kHz@-1dBFS): -107 dB~
- Channel Crosstalk (1 kHz): -122.5 dB
- Max Phase Deviation: +7° 20Hz, +16° 22kHz
- Input Impedance (balanced): 20 kOhm
- Output Impedance (balanced): 50 Ohm
- Maximum output level: +17 dBu
Latency:
- Natural Phase mode: 1.4ms
- Linear Phase mode: 42ms
Power: Powered by included power supply
Dimensions:
- Size: 14.4cm x 12cm x 4.5cm
- Weight: 465g
Upgrade any studio monitor instantly with the first out-of-the-box acoustic room correction system that anyone can afford. ARC Studio combines a standalone correction processor, new ARC 4 measurement software and a room analysis microphone.
There’s a reason all today’s top-tier studio monitors are adding active room correction – it supercharges their performance and ensures mixes translate flawlessly. ARC Studio offers this same massive boost in performance and accuracy to any monitor in every studio.
Features:
Improves any studio:
For pro studios, whether in-the-box or console-based, ARC Studio allows for a sonically transparent correction and custom-tuning for any monitoring setup from nearfields to mains, preserving the inherent system’s sonic quality.
Target Curves:
ARC 4 now comes with 9 factory target curves for most situations. The default curve offers optimally balanced results, with other specific curves for different needs or setups.
Adjustable correction range:
By Default, ARC corrects the entire frequency spectrum, but you can define limits to both upper and lower correction ranges separately. This is useful if you want to preserve the unique voicing of your monitors or are just looking to correct a certain frequency range.
Audio:
- AD and DA converters: AKM Velvet Sound
- Audio conversion and internal processing sampling rate: 96 kHz
- Audio conversion resolution: 24-bit
- Internal processing resolution: 32-bit float
- Frequency Response: 2 Hz - 45.0 kHz (- 2.0 dB)
- Dynamic Range: 120 dB (A-weighted)
- THD (20-20 kHz): 0.00035%
- THD+N (1 kHz@-1dBFS): -107 dB~
- Channel Crosstalk (1 kHz): -122.5 dB
- Max Phase Deviation: +7° 20Hz, +16° 22kHz
- Input Impedance (balanced): 20 kOhm
- Output Impedance (balanced): 50 Ohm
- Maximum output level: +17 dBu
Latency:
- Natural Phase mode: 1.4ms
- Linear Phase mode: 42ms
Power: Powered by included power supply
Dimensions:
- Size: 14.4cm x 12cm x 4.5cm
- Weight: 465g
